2025 Hot Selling Pile Driver 1300 joules RCH530D Bored Piling Rig With 70KW Power
Product Description
The RCH530D Bored Piling Rig is a highly versatile and efficient machine designed for the installation and maintenance of highway guardrails, garden fences, and small foundation projects. Its precision hydraulic control system allows for the accurate driving of guardrail columns into the soil, ensuring perpendicularity and stability. This enhances the overall safety and durability of highway crash barriers.
What sets the RCH530D apart is its dual functionality. The same hydraulic system that drives piles into the ground can also be used to easily extract piles, making it ideal for pile reuse or repositioning. This flexibility improves construction efficiency and reduces project costs.
The RCH530D boasts a strong drilling capability, enabling it to work in a variety of challenging geological conditions. It can drill through hard materials such as soil, asphalt, concrete, rock, and granite, ensuring reliable performance even in the most demanding environments.
Whether for installation, maintenance, or small-scale foundation work, the RCH530D is built to deliver high performance, stability, and versatility.
Product Specifications
| Model | RCH530D |
| Transportation size (L*W*H) | 6500mm*2200mm*2700mm |
| Working Size (L*W*H) | 3500mm*2200mm*7500mm |
| Crawler Size | 2550mm*1700mm*530mm |
| Vehicle Weight | 4500-5200KG |
| Diesel Engine Rated Power | 70KW |
| Flow Rate of Hydraulic System | 113.4L/Min |
| Hydraulic Pressure(Max) | 20Mpa |
| Mast Stroke | 200-5500 |
| Hydraulic Hammer | YC360 (85MM borehole rod) |
| Impact | 1300J |
| Piling efficiency | 3200mm/Min |
| Drilling Depth(Max) | 3500mm |
| Borehole Diameter | 50-300mm |
| Climbing Ability(Max) | 30° |
| Speed | 3.8KM/H |
| Left/Right Sliding Stroke(Max) | 500mm |
| Max Inclination Angle of Sliding Guide Frame | Left 30°/Right 8° |
| Front / Rear Adjusting angle of frame | Front 75°/ Rear 15° |
| Min Ground Clearance | 230mm |
| Capacity of Hydraulic Oil Tank | 80L |
| Capacity of Diesel Tank | 80L |
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

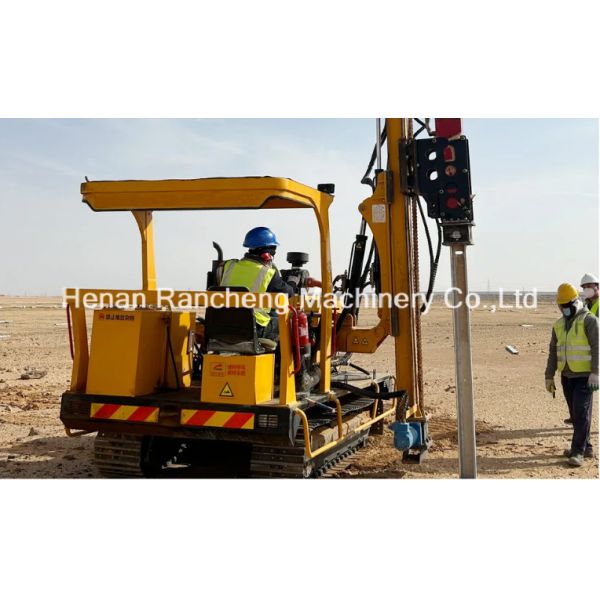

Product Image
